professional knowledge/help required regards tank build strength

Post by chrismaher1505 »

Hi Guys and girls

im new to the forum and returning o the hobby of which ive been out of for a number of years due to the birth of my 2 children

long story short i used tto run a fish house in my garage and had some lovely big tanks running!, i used to breed various species of central and south american cichlids.

i have recently undertaken a project to self build 2 bespoke angles tanks to fit either side of my chimney breast in my living room. the idea being to just have 2 really attractive show tanks.

but here lies he problem! i will be the first to admit i have been a bit hasty and have not done enough homework into glass thicknesses for specific tank dimensions! and now believe i may be under spec for the two tanks i have already put together :( that being after using various online calculators

as mentioned the tanks are a strange shape so are not the easiest to calculate

ia lot of the calculators im using are assuming the tank is rimless which it isnt as i have braced them quite thourougly (im hoping this bracing will increase the tensile strength of the panels ?

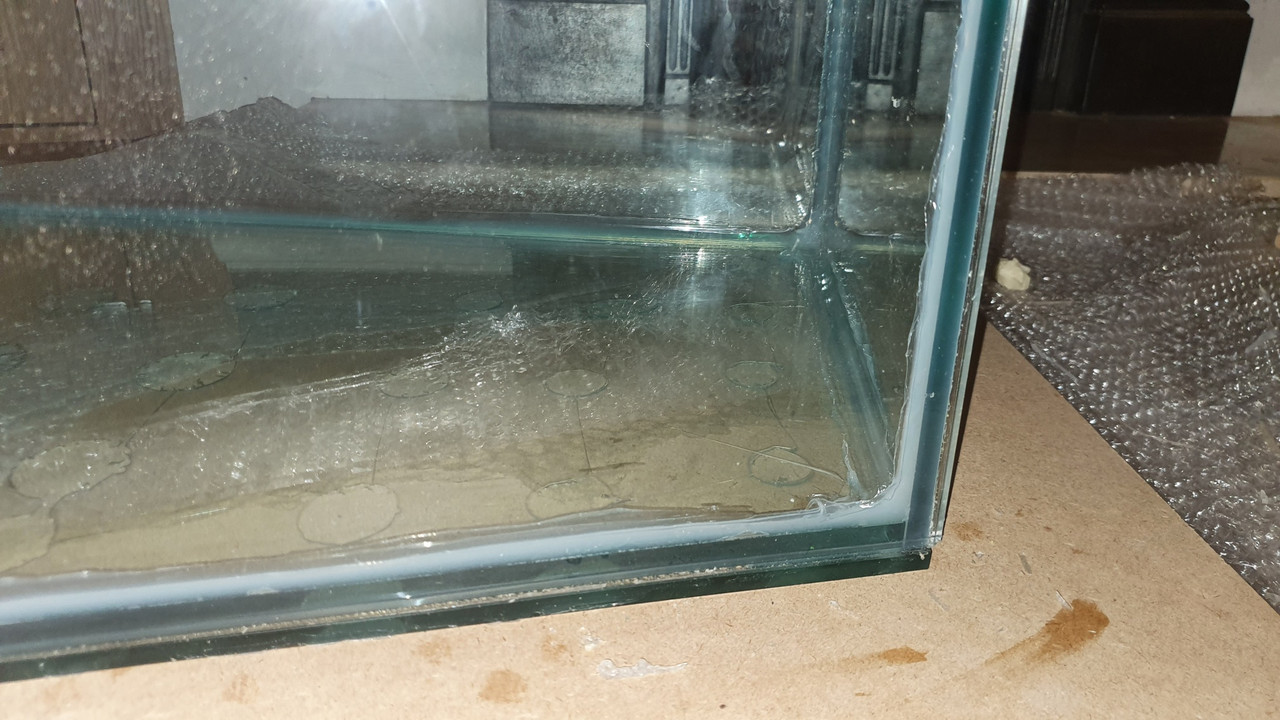

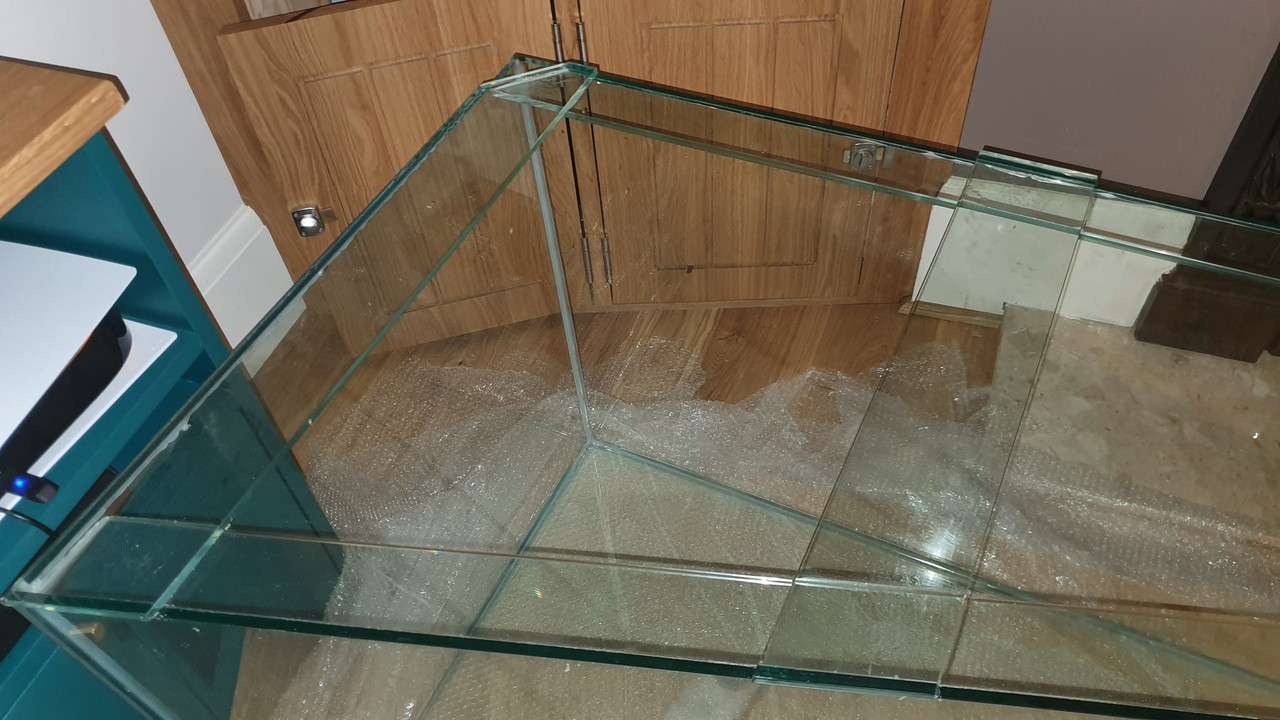

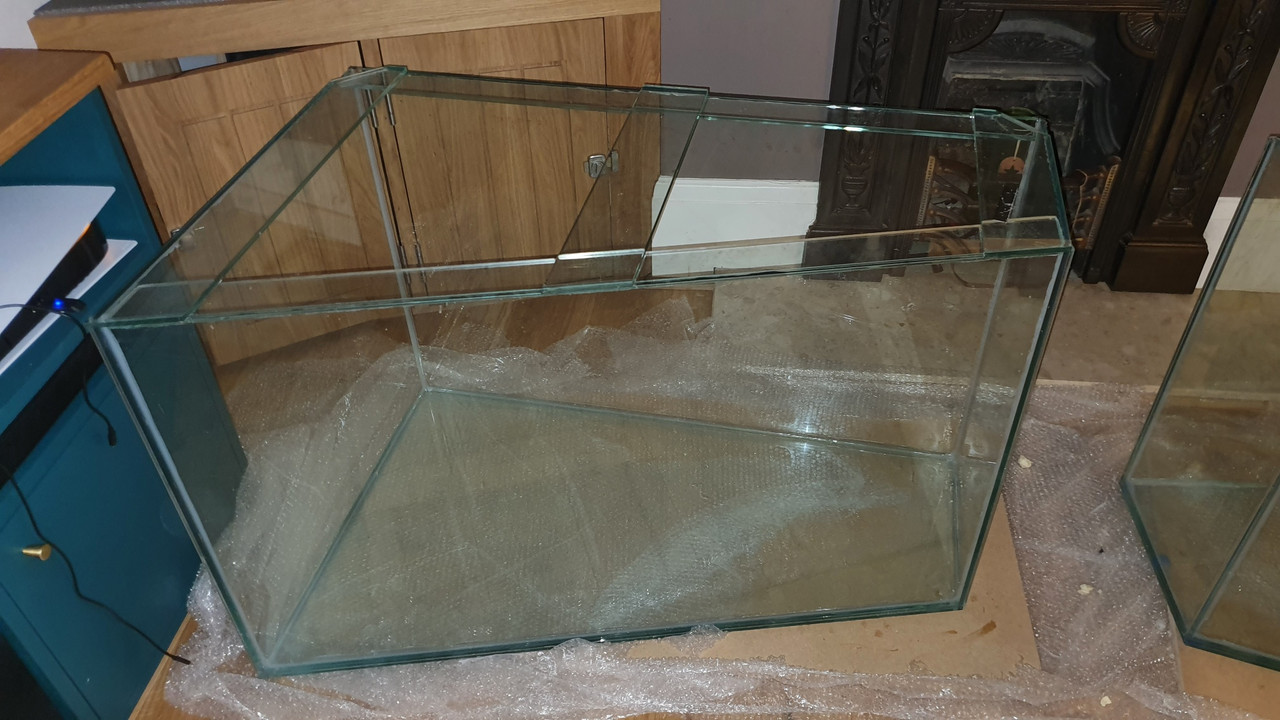

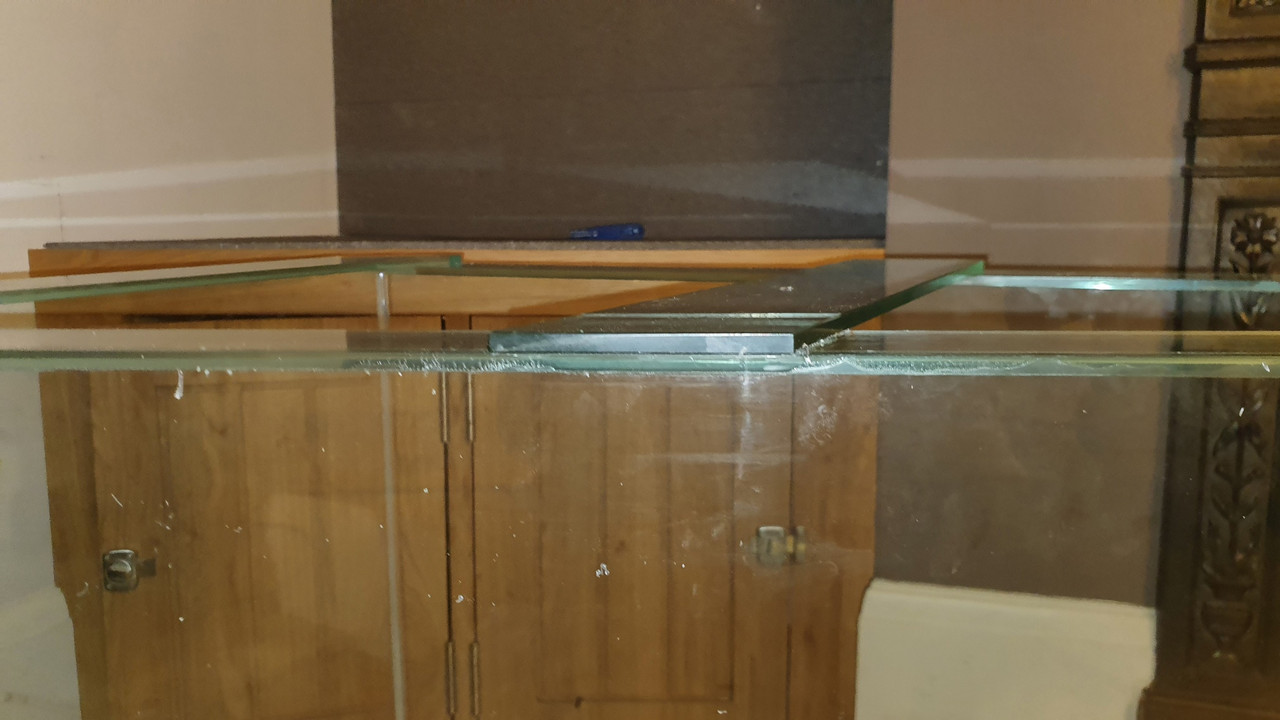

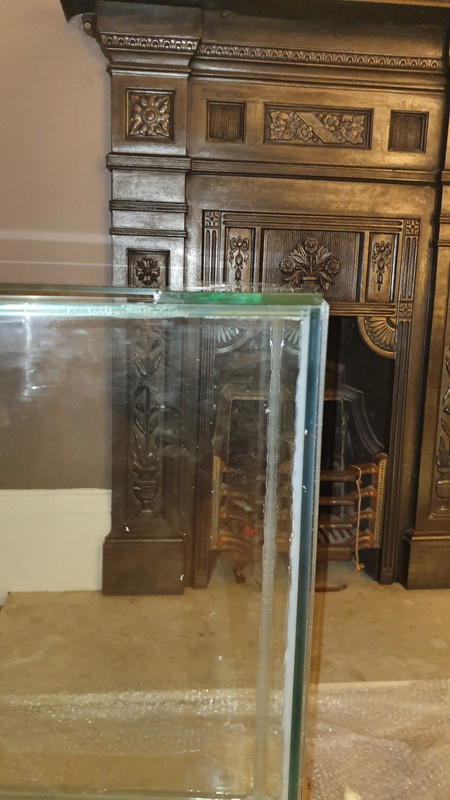

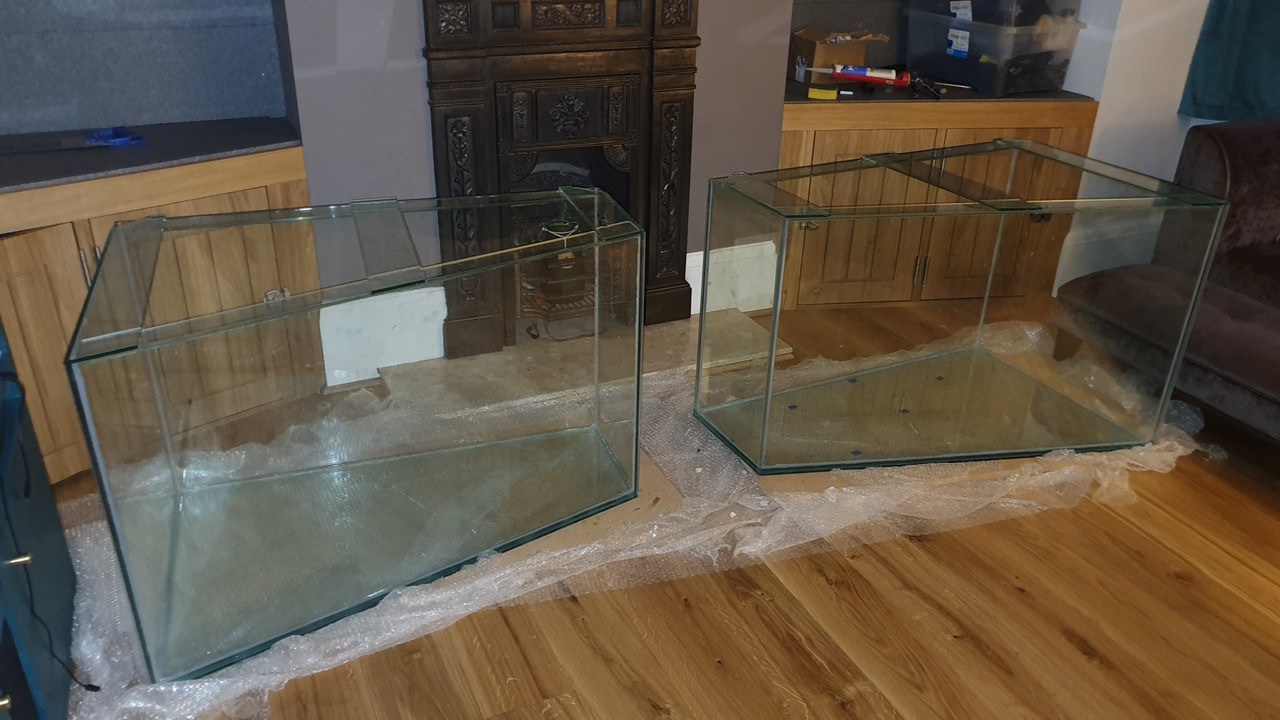

please see images attached of the tanks, one has all relevant dimensions as mentioned glass thickness is 8mm i have used a double base 2 x 8mm and have braced as shown

any and all comments and advice is welcome
